Fine Mineral Separation Technology
Mineral Technologies design and manufacture the world’s leading range of equipment for physical separation processes. As a global technology pillar represented within our hub, they offer unparalleled solutions in gravity, electrostatic, and magnetic systems, optimization circuits, and tailored plant layout configuration.

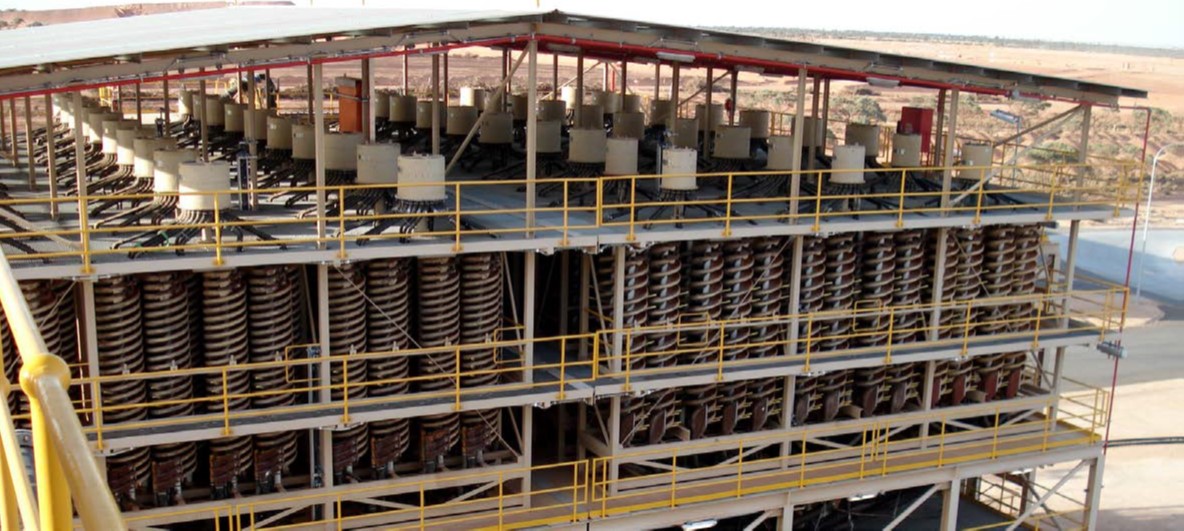

MD Spirals Portfolio Spectrum
Equipment Range & Feeds Characteristics
Engineered for feed material generally containing up to 25% heavy mineral (reaching up to 40% in specific applications).
Designed for high-grade feed material parameters generally greater than 25% and as high as 90% heavy mineral.
Custom-built and optimized specifically for process feeds carrying very high concentration levels of heavy minerals.
Specialized fine mineral separation circuits fine-tuned for feed material sizing in the strict range of 30 to 150 microns.
Utilises integrated wash water addition mechanisms for enhanced, highly-precise grade control in targeted iron ore configurations.
Super-high capacity spirals specifically layout-designed to enable highly economical footprint allocations and compact processing plants.
Electrostatic Separation Ranges
Carrara Electrostatic Range
Plate & Screen Plate Electrostatic Separators- Supplied with five internal separation stages configured structurally for non-conductor re-treatment circuits.
- Independently adjustable electrode assemblies paired with electro/pneumatic sliding feed gates for absolute feed rate control.
- Highly dustproof enclosures integrated with secure lockable doors to maximize operator field safety.
- Applications: Separation of titaniferous mineral sands, hard rock ilmenite, rutile, cassiterite, tantalite, iron ore, and targeted PVC/plastic waste recycling.
High Tension Roll Separator (HTR)
Advanced Electrostatic Roll Processing- Available in 270mm and 400mm diameter industrial models, supplied in robust two or three roll sequence stages.
- Features lightweight, thermally stable composite induction electrodes alongside a premier glassless electrode layout.
- Equipped with an advanced internal splitter system that completely handles middlings, conductor, or non-conductor retreatment without chute alterations.
- Labyrinth-sealed, maintenance-free roll bearings matching PLC automated industry control architecture perfectly.
Low & Medium Intensity Magnetic Separation
LIMS & MIMS Applications Range
Reading Low and Medium Intensity wet and dry drum magnetic separators (LIMS and MIMS) are built for the highly efficient removal of more highly susceptible magnetic particles inside dense medium circuits and broad granular processing streams.
- • Titanium dioxide / Fe2O3 ratio sorting
- • Upgrading staurolite and garnet
- • Zircon into non-magnetics filtering
- • Silica and high-grade glass sand output
- • Magnetic impurity precious stone extraction
- • Granular feed stock iron decontamination
